| Machine Model |

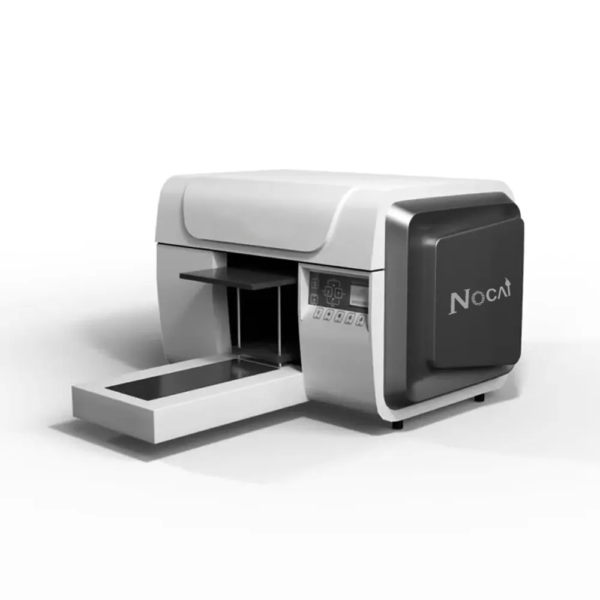

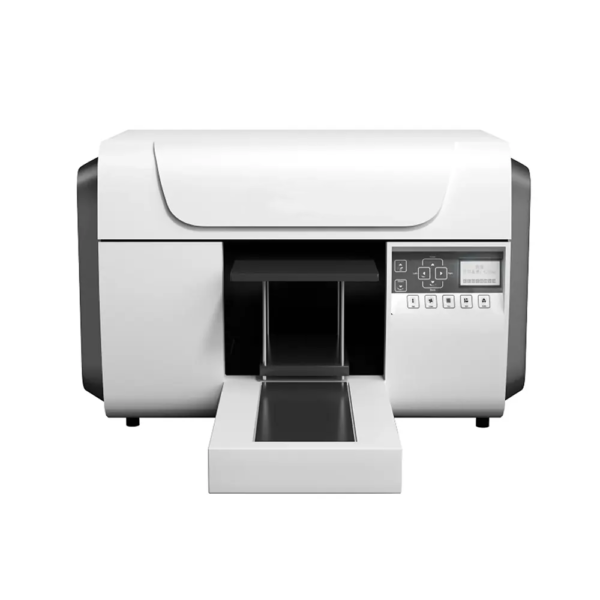

UVIP A3 Flatbed Printer |
| Printhead Configuration |
Epson i3200-U1HD*1 |
| Printhead Ejection Force Range |
2-3mm |
| Number of Nozzles |
3200 |
| Nozzle Pitch |
1/300 inch |
| Number of Nozzle Rows |
8 |
| Maximum Supported Ink Colors |
8 |
| Printhead Physical Resolution |
300npi/1row，600npi/2 rows，1200npi/4 rows |
| Effective Printing Width |
33.8mm |
| Ink Droplet Ejection Performance (Droplet Size and Ejection Frequency) |
2-level grayscale 5pl (43.2kHz) |
| 3-level grayscale 6.0-12.5pl (21.6kHz) |
| 4-level grayscale 3.8-6.2-9.3pl (21.6kHz) |
| Compatible Ink Viscosity |
5-7mPa.s |
| Printable Area |
297*420mm |
| Printing Thickness |
0-90mm |
| Printing Mode |
CMYK+W+V/CMYKLcLm+W/CMYKLcLmLkLIk/CMYK |
| Resolution |
960*1200dpi/960*960dpi |
| Machine Size |
Length*Width*Height |
1000mm*902mm*592mm |
| Net weight (approx.) |
78KG |
| Package size (approx.) |
Length*Width*Height |
1.11m*1.01m*0.76m |
| Gross weight (approx.) |
110KG |
| Printing Software |
Future Rip |
| Flatbed printing speed (A3 format) |
High Precision Mode (8pass) |
9-34 minutes/version |
|
Standard Model (6pass) |
7-33 minutes/version |
| graphic format |
Tiff,Jpg,Eps,Pdf |
| connection method |
network cable |
| Power source Voltage |
AC220/110V,50HZ~60HZ |
| rating |
140W |
| Operating environment (temperature, humidity) |
20℃-28℃ |
| 35%-65% |
| Ink Type |
UV INK |
| Printer Type |
Digital Inkjet Printer |
